Load Cell in Coimbatore

Bending Beam load cells are most popular and used in commercial weighing applications
Usage: Weighing scales such as dosing scales, overhead conveyor scales, platform scales.
In platform scales has multiple bending beam load cells connected in parallel.
Very sturdy and reliable devices, suitable for use in harsh industrial environments.
Bending beam load cells can be calibrated for grams, kilograms or tons.

S-type load cells are mainly used to measure tensile forces, but also are suitable for compressive force measurement.

---

Material : Aluminium/Steel

---

Usage: Hybrid scales, silo scales, crane scales, big bag weighing equipment

---

Features: Low Profile Load Cell, High Accuracy, durable

---

Temperature: Can withstand extreme temperature ranging from -5 ^o C to 60 ^o C

---

Safe Overload: 150%, Overload Protection

---

Power Supply: 110/220v

---

Available in various weighing capacity and sizes

---

Sturdy, durable, accuracy in weighing and can withstand extreme temperature fluctuation

---

Also serve as force transducers in tensile strength and fatigue testing machines.

---

Voltage Excitation Range: 6 V - 15 V DC

---

Application: Used in small to medium scale for loads up to 1 ton

---

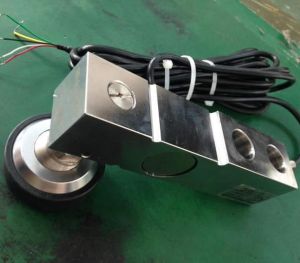

Shear beam load cells are widely used where operators need to measure compressive forces
Single Ended Shear Beam load cell is used for medium loads up to about 5 tons.
Usage: Conveyor scales, container scales and platform scales, packaging and bottling plants
Shear beam load cells are also used for the measurement of forces and torques in industrial plants.
Platform scales are normally equipped with several such load cells connected in parallel.

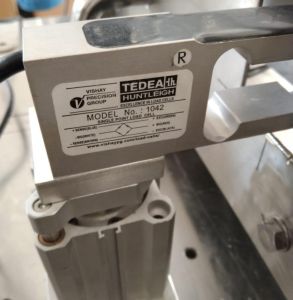

Type: Single Point Load Cell

---

Model No: 1042

---

Material: Aluminium

---

Capacity: 1 kg to 100 kg

---

Brand: Tedea HuntLeigh

---

Item Code: VS-57090
Capacity: 100 kgs to 500 kgs
Material: Nickel plated alloy steel, Stainless Steel SS
Hermetically sealed
High accuracy, high stability
Protection class: IP67
Operating temperature range: -20 to +60 °C
Safe overload: 150 % of RC
Ultimate overload: 200 % of RC

Applications of Bending Beam Load Cell

• Industrial Automation Applications where vibrations are required to control
• Hopper, Tank Weighing Systems
• Baggage Weighing
