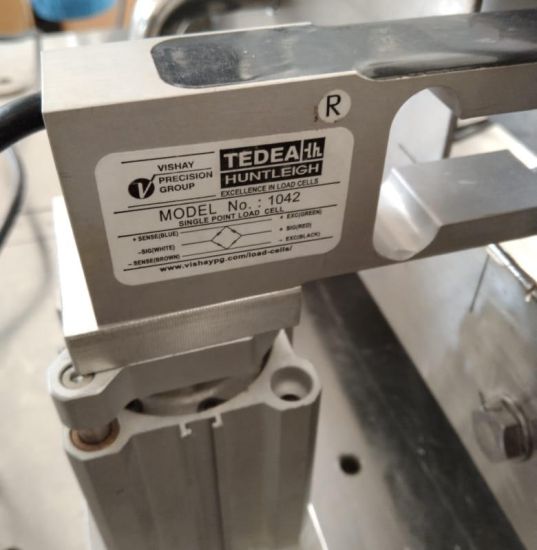

Features & Specifications of Load Cell

• Load Cell Capacity: 1 kg to 100 kg
• Material: Aluminum
• Ingress Protection: IP66
• Certifications: NTEP, ATEX, OIML
• Load Cell Type: Single Point Load Cell
• Output Sensitivity(FS): 2.0 ± 0.1 mV/V
• Load Cell Maximum Safe Overload: 150% FS
• Ultimate Safe Overload: 300% FS
• Recommended Excitation Voltage: 10V to 12V DC
• Maximum Excitation Voltage: 15V DC
• Input Resistance: 415 ± 20 Ohms
• Output Resistance: 350±3 Ohms
• Insulation resistance at 50V DC: >= 1000 M Ohm
• Compensated Temperature Range: -10 to +40 ° C
• Operating Temperatue Range: -30 to +70 ° C
• Platform Size: Single point 400 x 400 mm platform
• Supplier/Dealer of Load Cell: Wedier, Coimbatore
