Bending Beam Load Cell Bellow Type
Home > Weighing Scale > Load Cells, Digital Load Cell > Load Cell

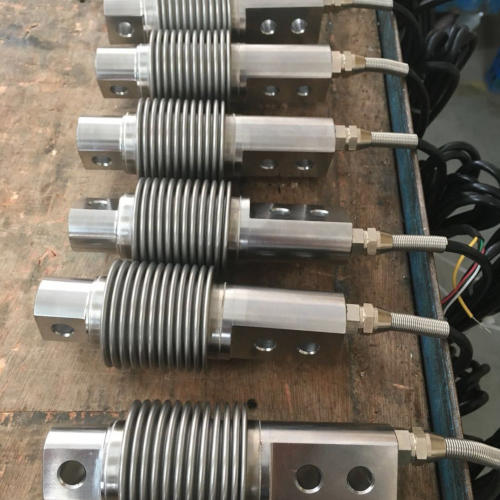

Bending Beam Load Cell Bellow Type
Bending Beam Load Cell Bellow Type

Capacity Available: 100 kgs to 500 kgs Load Cell
Item Code: VS-57090
Body Material: Nickel plated alloy steel, Stainless Steel SS
Supplier/Dealer of Load Cell: Vasavi, Chennai
Protection: Hermetically sealed
High accuracy, high stability Load Cell
Load Cell Protection class: IP67
Operating temperature range: -20 °C to +60 °C
Safe overload: 150 % of Rated Capacity
Ultimate overload: 200 % of RC
Free Shipping in Chennai and nearby areas


Send Inquiry



Technical Specifications of Bending Beam Bellow Type Load Cell

Capacity of Load Cell (Emax)100-500KG
Rated output-R.O.2.0mV/V
Zero balance1±% of R.O.
Non linearity0.03±% of RO
Load Cell Hysteresis0.03±% of RO
Non-repeatability0.02±% of R.O.
Creep error (30 minutes)0.03±% of R. O.
Zero return (30 minutes)0.03±% of RO
Temperature effect on min. dead load output0.0026±% of rated output/°C
Temperature effect on sensitivity0.0015±% of rated output/°C
Load Cell Compensated temperature range-10 to +40°C
Excitation, recommended10Vdc
Excitation, maximum15Vdc
Input resistance380±10Ohms
Output resistance350±3Ohms
Insulation resistance5000Mega-Ohms
Dealer Supplier of Load Cell Vasavi, Chennai






Vasavi Scales, Chennai

We offer our clients with comprehensive range of Weigh Systems including load cell. We being leading manufacturer and supplier in Chennai, we ensure that our raw material is authentic by procuring from established vendor base. Since 1998, we have started the Electronic & Manual Weight Instruments automations in India, we are backed by our profound experience in the domain. Our range of products include such as Load Cell, Table Top/Platform/Compact/Bathroom/Crane/Multipurpose Scale, Load Sensor, Spring Balance, Billing Machine, Test Weights, Analytical Balance,Cash Counting Machine etc.
