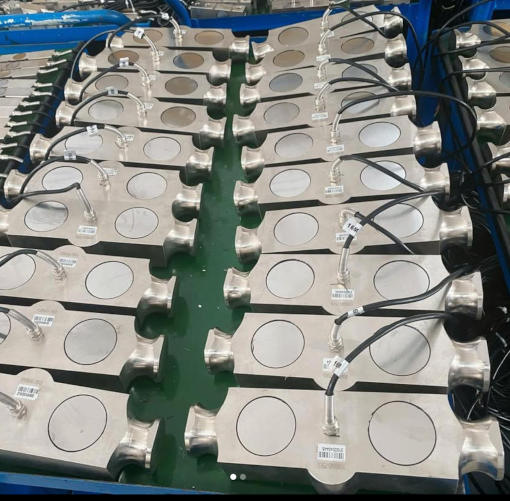

Double Ended Shear Beam Load Cell

Double Ended Shear Beam Load Cell


Double Ended Shear Beam Load Cell
Double Ended Shear Beam Load Cell

It is a Mid to High capacity double ended shear beam load cell suitable for Tank, Hopper &Truck Weighing
Capacity: 5 Kg to 100 Ton
Centre Link Loading
Alloy Tool Steel construction
Environment Protection: IP 67
Weigh Module available
Applications: Weighbridge, Truck Scale, Tank & Silo Weighing


Send Inquiry



Technical Specification of Double Ended Shear Beam Load Cell

Rated Capacity5, 10,15,20,23, 30, 40, 50,75, 100 Ton
Excitation Voltage10VDC - Maximum 15 VDC
Rated Output3.0 mV/V
Non-Linearity< ± 0.025 % FSO (Full scale Output)
Hysteresis< ± 0.02% FSO
Non-Repeatability< ± 0.01% FSO
Creep error (30 minutes)< ± 0.03 % FSO
Zero Load Output± 1.0 % FSO
Input Resistance770 ± 20Ohms
Output Resistance700 ± 7Ohms
Insulation Resistance>1000 Mega Ohms
Safe Overload150 % of Rated Capacity
Ultimate Overload250 % of Rated Capacity
Side Load Allowed50 % of Rated Capacity
Side Load Discrimination500 : 1
Temperature Compensated Range0 to 60°C
Temperature Effect on Output >0.0015 % FSO/°C
Temperature Effect on Zero< 0.002 % FSO/°C
Deflection>0.5 mm at FSO
Tightening Torque10 Kg-m.
Finish & ConstructionElectroless Nickel Plated Tool Steel.
Environment ProtectionIP 67compatible
