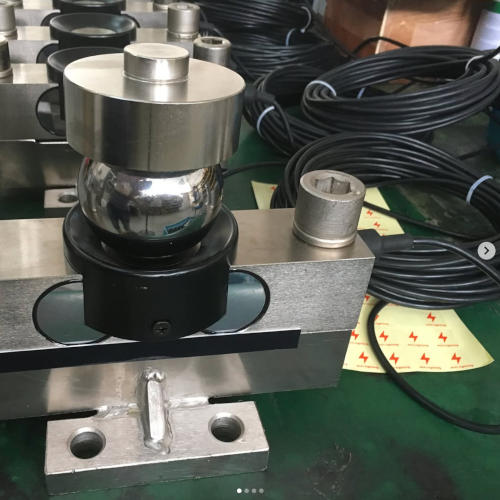

Cup and Ball Type Weighbridge Load Cell upto 30 Ton

Cup And Ball Type Weighbridge Load Cell Upto 30 Ton


Cup and Ball Type Weighbridge Load Cell upto 30 Ton
Cup and Ball Type Weighbridge Load Cell upto 30 Ton

Unique bridge structure Load Cell with Cup and steel ball mounting
Self-resetting and centering.
Widely used in truck scales, railroad scales, hopper scales, special scales.
Good side force resistance and shock resistance
Moisture proof sealed
Ideal for hostile environments
Simple to install, Easy to use
Good inter changeability
Type: Strain gage based double Ended Shear Beam Load Cell
Protection Class: IP 68
Capacity: upto 30 Ton


Send Inquiry



Specification of Cup and Ball Type Weighbridge Load CellM

Rated Output (mV/V)2.00 (±) 0.01
Output Resistance700 Ohm (±) 3Ohm
Nonlinearlity(±) 0.02% FS
Insulation Resistance>5,000MOhm
Hysteresis(±) 0.02% FS
Excitation Voltage10V (DC/AC)
Repeatability(±) 0.01% FS
Compensated Temperature Range-10 °C to +50 °C
Creep (30min)(±) 0.02% FS
Operating Temperature Range-20 °C to +60 °C
Zero Balance(±) 1.0% FS
Safe Overload120%FS
Temperature Effect on Zero(±) 0.02% FS/ 10 °C
CableÃ??6 to 12m
Temperature Effect on Output(±) 0.02% FS/ 10 °C
Cable Colour CodeInput: Red (+) Black (-)
Output: Green (+) White (-)
Input Resistance 770 Ohm (±) 10 Ohm
