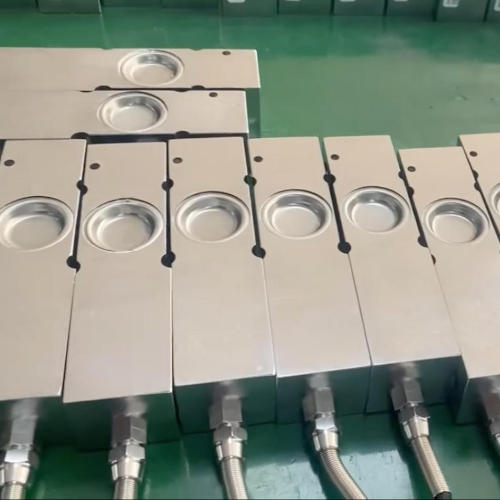

Single Ended Load Cell 50 Kg to 20 Ton

Single Ended Load Cell 50 Kg To 20 Ton


Single Ended Load Cell 50 Kg to 20 Ton
Single Ended Load Cell 50 Kg to 20 Ton

Load Cell Capacity: 50 kg to 20,000 kg
Body Material: electro less Nickel/Stainless Steel
High Accuracy with 0.02% combined error
Operating Temperature: 20 °C to + 65 °C
NMI (Trade) approved models.(S526)


Send Inquiry



Features of Single Ended Load Cell

  • Available in electro less nickel or stainless steel construction.
  • Matched outputs make corner adjustments un-necessary in most applications.
  • Load Cells are 100% tested to guarantee load and thermal specifications are met or exceeded.
  • High accuracy 0.02% combined error.
  • Wide range of purpose built stainless steel and plated mounts & accessories.
  • Popular Capacities - 50kg to 20,000kg
  • Hermetically sealed IP68* rating.
  • Laser* welded construction. Most similar load cells have only bonded seals
  • NMI (Trade) approved models.(S526)
  • International Load cell bolt pattern.


Applications of Single Ended Load Cell

  • All Floor Scales
  • Batch Weighing
  • Hopper Filling & Level Control
  • Food and Chemical Industry
  • Bagging and Filling Machines
  • Inventory Control By Weight
  • Shipping Scales
  • Cattle Scales
  • All Agricultural Applications


Specification of Single Ended Load Cell

Capacity50kg-20,000kg
Safe Overload100% Capacity
Ultimate Load300% Capacity
Safe Side Load100% Capacity
Full Load Output2m V/V (±) 0.10%
Combined Error<0.03% FS
Non Repeatability<0.01% FS
Creep/Zero Return<0.02% FS
Zero Balance<1% FS
Span Temperature<20ppm °C
Zero Temperature<20ppm °C
Compensated-10 °C to + 50 °C
Operating Range-20 °C to + 65 °C
Excitation5VDC to 12VDC
Excitation (Maximum)18VDC
Input Resistance385 Ω (±) 10 Ω
Output Resistance350 Ω (±) 3Ω
Insulation>5,000MΩ
