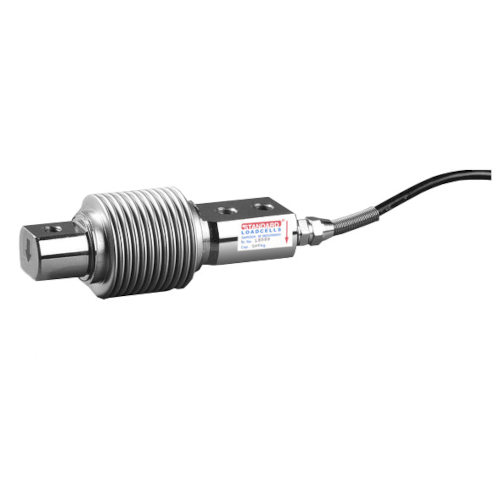

Bending Beam Load Cell Bellow Type 100 Kgs To 500

Bending Beam Load Cell Bellow Type 100 kgs to 500

Alloy Tool steel & stainless structure

SS bellows hermetically sealed by laser

Waterproof & anti-corrosion

Capacity: 100 Kg to 500 Kg Load Cell

Reduces vibration in system by means of bellows

Suitable for multiform environments

Application: Industrial Automation Applications where vibrations are required to control, Hopper, Tank Weighing Systems, Baggage Weighing

Standard Specification of Bending Beam Load Cell Bellow Type

Nominal Output	2.0 ± 0.1 mV/V (mili Volt per Volt)
Precision	C3 (0.02% FSO comprehensive error)
Excitation Voltage	9 VDC - Maximum 12 VDC
Safe Load	120% of Rated Capacity
Ultimate Load	150% of Rated Capacity
Non Linearity	< ±0.03% of FSO (Full Scale Output)
Creep (30 minutes)	< ±0.020% of FSO
Zero Balance	< ±1% of FSO
Input Resistance	350 ± 10 ohms
Output Resistance	350 ± 5 ohms
Insulation resistance	Above 5000 Mega ohms
Temp. Compensation	-10°C to +40°C
Temp. Effect on zero & span	≤ 0.03% FSO/10°C
Material	Alloy Tool Steel and stainless steel structure
Cable	4mm dia., 3mts length
