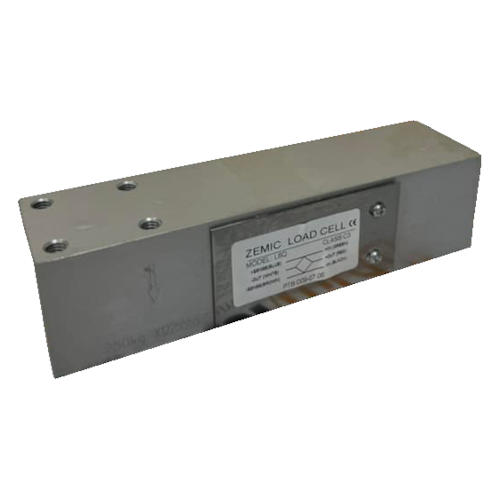

Zemic L6Q Aluminium Single Point Load Cell 50kg - 250kg

Zemic L6q Aluminium Single Point Load Cell 50kg - 250kg


Zemic L6Q Aluminium Single Point Load Cell 50kg - 250kg
Zemic L6Q Aluminium Single Point Load Cell 50kg - 250kg

Material: Aluminium Alloy
Protection: IP65, Environmentally sealed
Type: Single Point load cell
Colourless anodized
Suitable for single and double load cell structured platform scales
Brand: Zemic
Maximum platform size: 400 x 400 mm
OIML Approved


Send Inquiry



Available Models of L6Q Load Cells

CapacityAccuracyDescription
50kgC3/C4L6Q-C3/C4-50kg-3B6
100kgC3/C4/C5L6Q-C3/C4/C5-100kg-3B6
150kgC3/C4/C5L6Q-C3/C4/C5-150kg-3B6
200kgC3/C4/C5L6Q-C3/C4/C5-200kg-3B6
250kgC3/C4/C5L6Q-C3/C4/C5-250kg-3B6


Detailed specifications Zemic L6Q Load Cell

Accuracy class C3
Output sensitivity ( = FS )mV/V2.0 ± 0.2
Maximum capacity ( Emax )kg50, 100, 150, 200, 250
Max.number of load cell intervalsnLC3000
Ratio of min. LC verification intervalY = Emax / vmin10,000
Combined Error %FS ≤±0.0230
Minimum dead loadOf Emax0%
Safe overloadof Emax150 %
Ultimate overloadof Emax300 %
Zero balanceof FS < ±2 .0 %
Excitation, recommended voltageV5 ~ 12
Excitation maximumV18
Input resistanceOhm406 ± 6
Output resistanceOhm350 ± 3
Insulation resistanceMOhm≥5000 ( at 50VDC )
Compensated temperature°C-10 ~+40
Operating temperature°C-20 ~ +50
Storage temperature°C-40 ~ +70
Element material Aluminium
Ingress Protection(acc. to EN 60529)IP65
Recommended torque on fixationNmM6:10


Wiring of L6Q Zemic Load Cell

Shielded, 6 conductor cable
Cable diameter: 5mm
Standard cable length: 2m
Shield not connected to element
Cable Jacket in PVC
