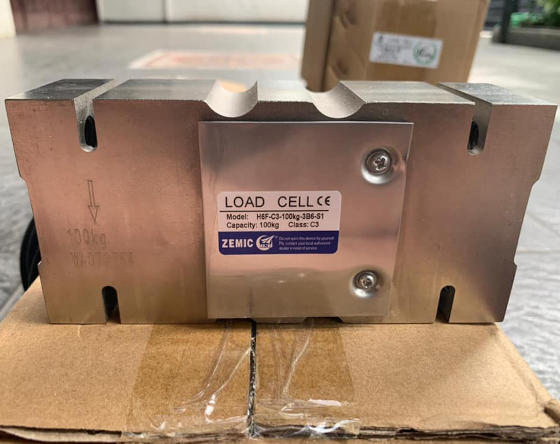

H6F Alloy Steel Single Point Load Cell 50kg-2Ton
H6F Alloy Steel Single Point Load Cell 50kg-2Ton

Type: single point load cell Bending beam
Material: Nickel plated alloy steel
Load Cell Protection: IP66
Brand: H6F Zemic
Manufacturer/Supplier of Load Cell: Scaletech, Vadodara
This Load Cell is suitable for belt, platform and other electronic weight devices
Maximum platform size for Load Cell:
for 50kg-200kg: 400 x 400 mm
for 250kg-500kg: 600 x 800 mm
for 750kg-2t: 1200 x 1200 mm


Send Inquiry



Available Models of H6F Load Cell

Load Cell CapacityAccuracyDescription
100kgC3H6F-C3-100kg-3B6
150kgC3H6F-C3-150kg-3B6
200kgC3H6F-C3-200kg-3B6
250kgC3H6F-C3-250kg-3B6
500kgC3H6F-C3-500kg-3B6
750kgC3H6F-C3-750kg-3B6
1000kgC3H6F-C3-1000kg-3B6
2000kgC3H6F-C3-2000kg-3B6


Detailed specifications of H6F Single Point 50kg-2Ton Load Cell

Accuracy class of Load Cell C3
Output sensitivity ( = FS )mV/V2.0 ± 0.2
Maximum capacity ( Emax )kg100, 150, 200, 250, 500, 750, 1000, 2000
Max.number of intervalsnLC3000
Ratio of min. LC verification intervalY = Emax / vmin7500
Combined Error %FS ≤±0.020
Minimum dead loadOf Emax0%
Load Cell Safe overloadof Emax150 %
Ultimate overloadof Emax300 %
Zero balanceof FS < ±1.0 %
Excitation, recommended voltageV5 ~ 12
Excitation maximumV18
Input resistanceOhm384 ± 4
Output resistanceOhm351 ± 2
Insulation resistanceMOhm≥5000 ( at 50VDC )
Compensated temperature°C-10 ~+40
Operating temperature°C-35 ~ +65
Storage temperature°C-40 ~ +70
Load Cell Element material Nickel plated alloy steel
Ingress Protection(acc. to EN 60529)IP66
Recommended torque on fixationNmM12:75 M16:200
ATEX classification (optional) II1G Ex ia II1C T4 II1D Ex iaD 20 T73°C II3G nL IIC T4
Manufacturer/Supplier of Load Cell Scaletech, Vadodara


Wiring of Load Cell

Shielded, 6 conductor cable
Cable diameter: 6.2mm
Standard cable length: 3m
Shield not connected to element






Scaletec Mechatronics Pvt. Ltd., Vadodara

We are one of the leading supplier of various kind of Load Cell, Weighing Scale including Zemic type manufactured by world renowned brand ZEMIC and related complete OEM solutions for Automation Industries.

Since inception in 1998 in Vadodara, it has built up a reputation as one of the leading suppliers in weight device, load sensors, strain gauges and sensors in India. With 14 years of being active in the field of weigh machine, you can expect from us a professional technical support for your application and we can support you with the best-fit solution of laod cell, mounting hardware, strain gauge or pressure and torque transducer. If our wide range of standard products does not meet your requirements, our engineering team and principal with more than 225 professional engineers are ready to design special products as per your specifications.
