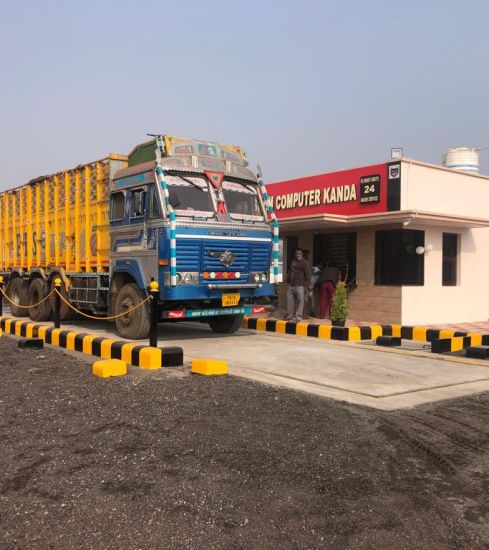

Concrete Electronic Weighbridge 120 MT
We are dealing in all types of Electronic Weighbridge with platform like Pit RCC Concrete Type, Pitless RCC, Pit Steel Type, Pit Less Steel, Mobile type System. Based in Ludhiana, we have a dedicated team of well trained professionals that provides assistance to our clients and also offers after sales support. Explaining the functioning of the weighbridge for its efficient usage they provide services such as: -
Key Features of Concrete Electronic Weighbridge
- It is very simple to use & installation procedure is also easy.
- Cost Effective
- Rated capacity 30Ton
- Protection Class IP68
- No Calibration required
- No signal attenuation from external environment
- Better Accuracy
- Long Distance signal communication between control room and structure (Up to 200 meter)
- Built In Surge protection
- Corner correction not required*
- Superior finish with superior Orange cable
- No chance of Signals manipulation
- Easy field replace ability
- Available to work with pre-calibrated Digital Load Cells
- Configuration Upload/download through pen drive
- Maximum Utilisable Memory, selectable up to2 Lac
- Barr Overloading feature especially useful for industries.
- Memory Status Display
- Field setting option for Vehicle wise working.
- USB port for pen drive connectivity (data in .xls format)
- SMS provision
- Settable pre-printed stationary
Technical Specifications of Concrete Truck Weighbridge
| Capacity | Least Count | Platform Size |
| 40/50/60 MT | 5/10 Kg | 7.5 m x 3 m |
| 40/50/60 MT | 5/10 Kg | 9 m x 3 m |
| 50/60/80 MT | 5/10 Kg | 12 m x 3 m |
| 60/80/100 MT | 5/10/20 Kg | 15 m x 3 m |
| 60/80/100 MT | 5/10/20 Kg | 16 m x 3 m |
| 60/80/100 MT | 5/10/20 Kg | 18 m x 3 m |
| 100/150/200 MT | 10/20/50 Kg | 20 m x 3 m |
| 100/150/200 MT | 10/20/50 Kg | 22 m x 3 m |
| 100/150/200 MT | 10/20/50 Kg | 24 m x 3 m |
| 100/150/200 MT | 10/20/50 Kg | 27 m x 3 m |
Electronic Weighbridge Hardware Details
- 32 Bit ARM Processor
- Front Mount 16x2 LCD Display & 1 inch LED display
- SMPS power supply
- On Board Memory to save 2 Lac Records
- USB Ports for Standard Computer Keyboard & pen drive
- Centronics port for 80 column Dot Matrix Printer
- RS232 port for display/GSM modem/ continuous weight transmission
- Table top port for connecting external wired displays
- Inbuilt wireless trans - receiver (Optional)
- Based in Ludhiana, we used superior make of all hardware required for the installation of the system.
Weighbridge Software Details
- Initial LCD Display message input settable as name
- Installation settings secured under engineer login
- Engineer login password field settable by authorised OEM
- Three types of cornering features available
- Smart Calibration
- Multi-step smart calibration
- Installation report
- Mandi Application feature of Rate, Amount, Binding material deduc-tion etc.
- Simple process for weighments of Tare/ Gross Vehicle weights
- 10 entries in ticket for 25 characters each
- 4 code banks for 100 codes each( Flexibility of setting)
- Settable header, footer, signature lines
- Facility to view/print earlier saved records according to RST no/ Vehicle no
- Multiple report option all/summary/filtered/serial no. wise/date wise/time wise
- Dumping of report into pen drive to avail softcopy of records (.xls)
- Settable Pre-printed tickets
- SMS feature in 3 different ways
- Net weight printing in words
- Kwality Weigh, Ludhiana provide complete installation with software.
Intelligent Terminal for Weighbridge
- Long Distance between control room and structure
- Lower division size can be obtained, leading to higher accuracy of unit
- Special DLC interlocking
- Settable number of load cells, up to 16
- Simple and fast Installation
- No need of manual cornering using trim ports & calibration with test weights.
- Automatic fault diagnosis with warning of particular DLC
- Installation report
Related Products/Services
We are manufacturers and exporters of high quality range of Electronic & Digital Truck Weighbridge System. We are dealing in all types of system with platform like Pit Type Steel and Surface Mounted Steel, Pit and Pitless RCC and also deals in bulk quantity of Electronic Weight Machines, Platform / Counter / SS Weigh / Crane Scales etc. Stringently tested and verified by our team of experts, these are highly durable and corrosion resistant. Based in Ludhiana, we can also manufacture on customer site outside the country to reduce its cost. Providing our customers, these machines in standard sizes, we are also engaged in repairing of old machines with a team of experienced engineers.
