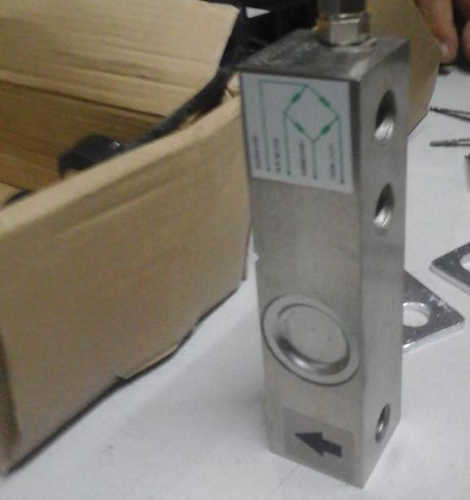

500 Kg Shear Beam Load Cell

Weighing Capacity: 500 Kg

Body Material: Nickel Plated Stainless Steel

Corrosion Resistant, minimum maintenance

High accuracy, linearity and long-term stability,

Application: Heavy Duty Platform Scales

Perfect for long-term use in harsh environments

Ideal for platform, floor and silo scales

Made in India, Ready Stock

Specification of Shear Beam Load Cell

Rated Output	3 mV/V ±0.0075 mV/V
Excitation	10 VDC (15 VDC maximum)
Accuracy	±0.037% Full Scale
Linearity	±0.03% FS
Hysteresis	±0.02% FS
Repeatability	±0.01% FS
Zero Balance	±% FS
Creep (20 min)	±0.03% FS
Operating Temperature	-18 to 65°C
Compensated Temperature	-18 to 65°C
Thermal effects	Zero - 0.0015% FS/°F Span - 0.0008% RDG/°F
Maximum Load	200% FS
Side Load Rejection	500:1
Bridge Resistance	350 Ohms nominal
Full Scale Deflection	0.015 in to 0.025 in
Material	Nickel Plated Steel
Cable	5 meter 4-wire shielded cable
Protection	Fully welded and hermetically sealed to (IP68 & IP69K).
Feature	Corrosion Resistant, Minimum Maintenance
