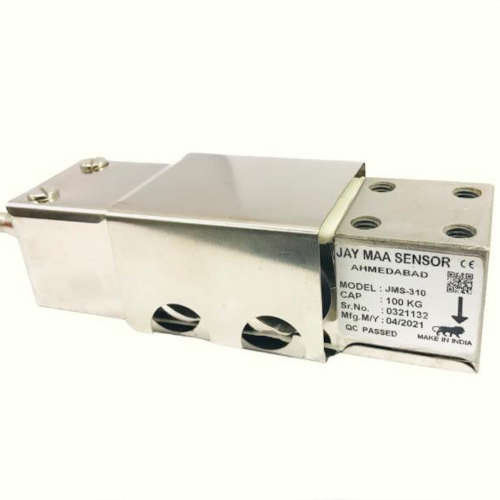

Single Point Platform Load Cell

Material Used: Stainless Steel SS

Model No: JMS 310

Manufacturer/Supplier of Load Cell: Jay Maa Sensor, Ahmedabad

Weighing Capacity: 100 kg, 150 kg, 300 kg

Rated Load (kg.) 75, 100, 150, 200, 250, 300, 500

Compact, Lightweight and economical

This load cell is available in Stainless Steel SS which is suitable for hygiene application like food, dairy, pharmaceutical etc.

Support platform device with size upto 600 x 600 (mm)

Minimum error for platform off-centre weighing

Application of Load Cell: Small size platform weight devices, check weighers, bag weighers

Advantages of Single Point Load Cell

A single point is also known as a platform load sensor, as platform weight device are one of the most popular applications of a single point.
Single point is the most common type worldwide.
Single point are extremely popular in low capacity compact weighing systems.
Their unique ability to accept off centre loads makes them well suited for various industrial applications.
Because they are so versatile, single point can be used to weigh anything from something as common as sugar to extreme matter such as dynamite and everything in between.
We are a prominent manufacturer and wholesale suppliers in Ahmedabad, Gujarat

Technical Specification of Single Point Load Cell

Precision: C2 / C3

Insulation Resistance(MΩ) : ≥20000(50 V DC)

Composition Error: 0.03 / 0.02

Excitation Voltage: 5 - 15 V (DC)

Rated Output (mv/v): 2.0 ± 10%

Compensated Temp. Range (℃): -10 to 40

Non-Linearity (%FS): 0.025

Use Temp. Range (℃): -20 to 60

Hysteresis (%FS): 0.02

Temp. Effect on Zero (%FS/10℃): 0.020

Repeatability (%FS): ± 0.02 / 0.01

Temp. Effect on Span (%FS/10℃): 0.01

Creep (%FS/30 min): ± 0.03 / 0.02

Safe Overload (%FS): 150

Zero Balance (%FS) ± 1.0

Ultimate Overload (%FS) : 250

Input Resistance (Ω): 390 ± 10

Defend Grade: IP67

Output Resistance (Ω): 350 ± 2

Cable: 6mm, 2.5 mtr
