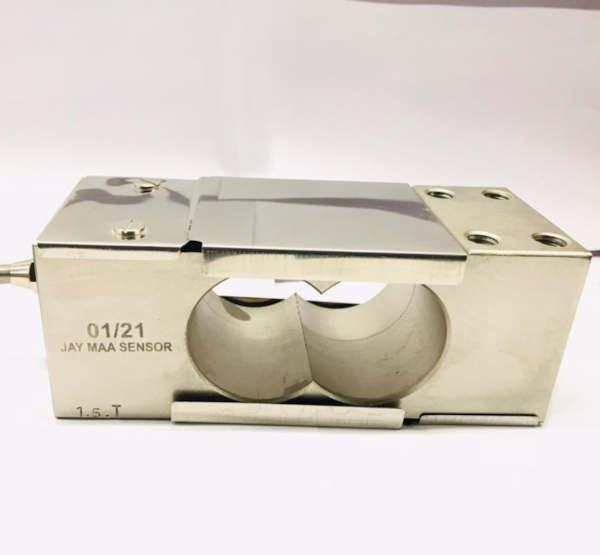

1.5 t Load Cell

Type: Single Point Heavy Platform Load Cell

Item Code: JMS 810

Capacity: 1.5 T / 1500 Kg

Body: Steel

Jay Maa Sensor, Ahmedabad have been very careful in selecting the best materials while designing the product.

Body: Tool Steel for Harsh Application and super performance

This is low profile, with minimum error for off-centre loading

Support Platform Scale with size upto 900 x 900 mm

Compact, Light Weight and Economical

Load Cell is highly durable, superior in finishing, an easy to maintain and clean.

The low-profile nature is perfect for its application in every purpose.

It is available at a reasonable price range online and fee delivery in Nearby areas.

Technical Specifications of 1.5 ton Load Cell

Related Load (kg.)	1000, 1500, 2000, 3000
Precision Type	C2 / C3
Insulation Resistance(MΩ)	≥ 2000 (100 VDC)
Composition Error	0.03 / 0.02
Excitation Voltage	10 - 15 V (DC)
Rated Output (mv/v)	2.0 ± 10%
Compensated temp. Range	-10 to 40 ^oC
Non-Linearity (%FS)	0.025
Use Temp. Range	-20 to 60 ^oC
Hysteresis (%FS)	0.01
Temp. Effect on Zero (%FS/10^oC)	0.0020
Repeatability (%FS)	0.02 / 0.01
Temp. Effect on Span	(%FS/10 ^oC) 0.0015
Creep	(%FS/30min) 0.03 / 0.02
Safe Overload	(%FS) 150
Zero Balance	(%FS) ± 1.0
Ultimate Overload	(%FS) 250
Input Resistance (?)	400 ± 10
Defend Grade	IP65
Output Resistance (?)	350 ± 2
Cable Length	6 mm, 5 mtr
Manufacturer/Supplier of Load Cell	Jay Maa Sensor, Ahmedabad
