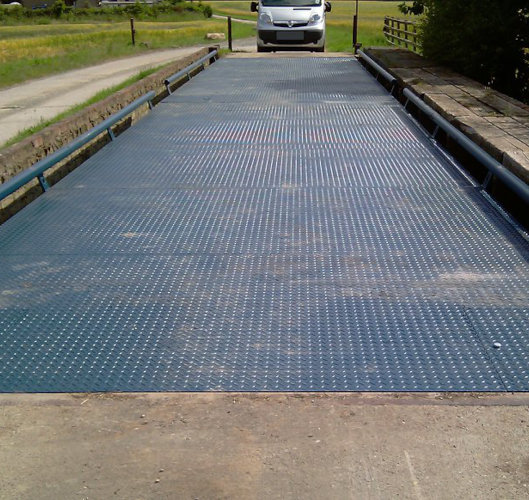

Electronic Weigh Bridge upto 120 Ton - HSCMTW
Frame: Made of Heavy Duty IS 2062 Structural Steel
HSC, Mumbai offers weighbridge that is extremely reliable and robust design
System Capacity: 10 Ton to 120 Ton
50% Overload Capacity
Item Code: HSCMTW
Frame to have 2 coats of Red Oxide Primer and Back Enamel Paint
Lightning resistant junction box
Vehicle can be loaded from any angle
One Year warranty with Government Stamping
Type of Construction: Pit/Pitless Type
Manufacturer/Installation of Weighbridge: HSC, Mumbai
Easy Maintenance
Salient Features of Electronic Weighbridge
- The entire frame of the weighbridge will be made of Heavy Duty IS 2062 Structural Steel by HSC, Mumbai.
- All Load carrying structures will be designed keeping in mind 50% Overload capacity
- Frame of the system will be divided into adequate section to avoid any deformation or deflection during the normal course of operation.
- The frame will be strong enough to withstand any Lateral and Longitudinal stress and strain, due to the vehicle coming from any direction which is Loaded upto 100% its Full Load Capacity.
- The entire frame will have two coats of Red Oxide Primer and Back Enamel Paint.
- The Top Deck will have ribs welded to it, to avoid skidding of vehicles.
- The entire structure of the weighbridge will be coated with one Layer of HSCO Hydra which is a Special Chemical Mixture and is Hydrophobic.
- It avoids the top Plate getting rusted in the Monsoons and is extremely resistant to Acid and other spills.
- This coating is especially necessary because owners of the truck weigh system would like to wash regularly with detergents that could be harmful to the structure.
- Lightning resistant junction box
- HSC, Mumbai offers one Year warranty with Government Stamping
Specifications of Weighbridge
| Model No. | Platform Size(m) | Capacity(Tons) | Graduation(Kgs) | No. of Load Cells | Road Clearance(m) |
| HSCMTW10 | 4.5x2.5 | 10/20 | 2/5 | 4 | 12 |
| HSCMTW20 | 6x2.5 | 20/30 | 2/5 | 4 | 15 |
| HSCMTW30 | 7.5x3 | 30/40 | 5/10 | 4 | 18 |
| HSCMTW40 | 9x3 | 40/50 | 5/10 | 4 | 22 |
| HSCMTW50 | 10x3 | 50/60 | 5/10 | 4 | 28 |
| HSCMTW55 | 12x3 | 50/60 | 5/10 | 6 | 35 |
| HSCMTW60 | 14x3 | 60/70 | 10 | 6 | 40 |
| HSCMTW65 | 15x3 | 60/70 | 10 | 6 | 50 |
| HSCMTW70 | 16x3 | 70/80 | 10 | 6 | 60 |
| HSCMTW80 | 18x3 | 80/100 | 20 | 8 | 70 |
| HSCMTW100 | 20x3 | 100/120 | 20 | 8 | 80 |
*The HSCMTW Series offered by HSC, can be modified as per your requirements. The above are the standard sizes available with us.
Application/Usage of Weighbridge
We offer weigh station which finds application in wide range of industries including:-
- Mining and Extraction
- Cargo and Shipment
- Logistics and Warehouses
- Transporters and Movers
- Manufacturing and Processing
