Pit Type Weighing bridge

In pit type, the cost of making the foundation is more as compared to pitless type. The portability of the system is nil as this system cannot be moved to new places easily hence, it should be installed at a place where it can remain there for years to come.

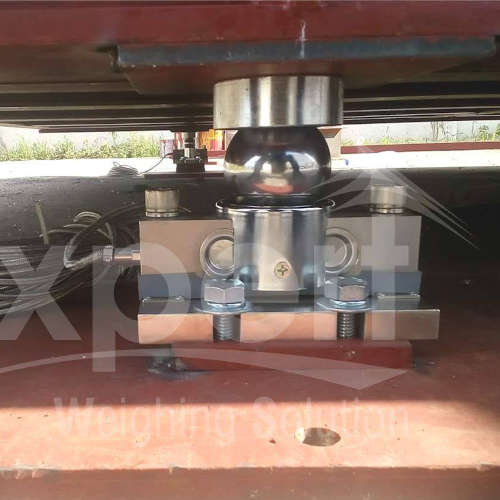

The system is typically a Steel platform mounted on load cells which are mounted in the pit on concrete pillars. The weighbridge can be 4,6,8,10 load cell based and is a fully digital system. There are no moving parts in fully electronic Pit type hence there is no need of periodical servicing or calibration. It can give the user trouble free and maintenance free operation for years.

It is useful where less rainfall takes place. In heavy rain fall prone areas, the pit will get full of rainwater and hence there will be continuous need to empty the pit otherwise if the water level raises to the level of load cells, it can damage the load cells permanently.

Benefits Of Pit Type Weigh bridge

• Costly Pit construction is eliminated.
• Platform Under PIT
• No water logging during rainy season
• Lesser Space Required
• Problem of pit maintenance is eliminated.
• Easy maintenance
• No Ramp required
• Rickshaw, Tractors & Trolleys Can also be Weigh

Pitless Weighing bridge

Pitless type Weighbridge as the name suggests, is not mounted in a pit. It is installed on and above the road level hence raising the bridge from the road level to a significant height. Ramps are made on both the sides of the bridge to enable easy access and removal of trucks onto the bridge deck for weighing.

This type is most suitable where the excavation work for foundation is difficult or construction of pit is expensive. Since the structure is above ground level, vehicles can approach the truck scale only from two directions where the ramps are provided. This type requires more space. In Pitless type RCC ramp work must be required at least 3 meters for both sides for easy movement of vehicle.

Benefits Of Pitless Type System

• Suitable for installation on surface which saves 60% cost of civil construction
• Platform above ground level- No water logging during rainy season
• In Pitless RCC ramp work must be required at least 3 meters for both sides for easy movement of vehicle
• Absence of moving parts and therefore little maintenance
• Structure is installed on ground and have joists on the sides.
• Easy Installation & maintenance as all parts are accessible above ground level and therefore a profitable investment.
• Easy maintenance since all parts accessible above ground level
• Designed to install on hard rock area where pit excavation is not possible for more than three feet.
• Easy cleaning with water hose pipe or compressor.

Why us?

Expert Weighing Solution, Ahmedabad have been setting benchmarks in delivering efficient and timely customer service across India for 18 years. It has a solid state deck with no deck plate bolts, creating a maintenance free environment. We offer honest, reliable sales advice prior to the purchase. Our truck scale is unique in that it is a modular design, therefore easy to transport, install and if necessary, re-locate to a new position, hassle free. Our vehicle management software is user friendly, with an abundance of reports. More importantly, it's free of annual license fees.

• Qualified and regularly trained service engineers
• Service support in PAN India and also across the globe.
• Support for a fleet of over 7,500 machines
• Guaranteed emergency service response
• Calibration service to ensure accurate weighing
• Dedicated central tech support team available
• State-of-the-art service delivery monitoring and control systems
• Service delivered in line with global standards
